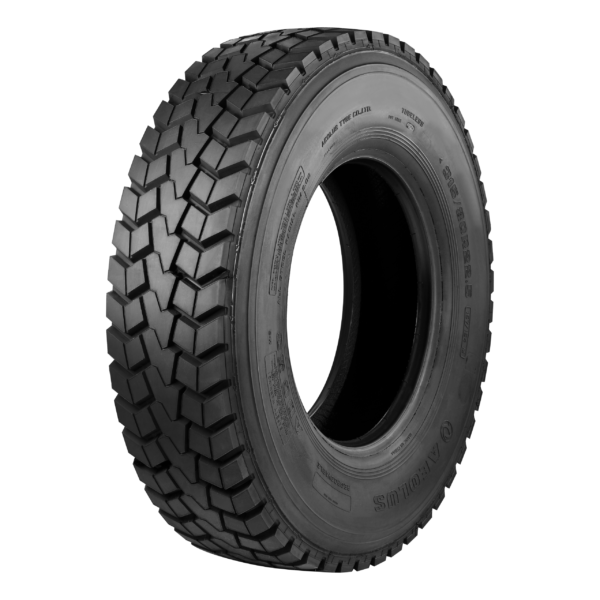

ADC53
- Drive axle suitable for mixed road surface and poor road condition.
- Double nylon reinforced for bead improves load capacity.
- Strengthened bead design for higher load applications
- High intensity HT cord increases carcass strength by 30% compared to standard casings
- Optimized design of the tire tread ensures even wear.
- Excellent traction and water evacuation
Tech Specs
| Size | Ply Rating | Meas. Rim |
Section Width |
Overall Diameter |
Tread Depth |
Max. Load & Press (Single) |
Max. Load & Press (Dual) |
LI/SS | Second LI/SS |
M+S | 3PMSF | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | inch | mm | mm | 32nds | lbs | psi | lbs | psi | ||||||
| 11.00R20 | 18.0 | 8 | 11.3 | 42.9 | 1090.8 | 18.5 | 23.3 | 7826 | 135 | 7165 | 135 | 152/149K | – | ✓ | ✓ |
| 11R22.5 | 16.0 | 8.25 | 10.9 | 41.9 | 1064.7 | 22.5 | 28.3 | 6614 | 120 | 6008 | 120 | 146/143L | 148/145K | ✓ | ✓ |
| 11R24.5 | 16.0 | 8.25 | 11.4 | 43.5 | 1105.7 | 22.5 | 28.3 | 7165 | 120 | 6614 | 120 | 149/146L | – | ✓ | — |
| 12.00R20 | 18.0 | 8.5 | 12.3 | 44.5 | 1129.3 | 20.6 | 26 | 8267 | 120 | 7606 | 120 | 154/151K | – | ✓ | ✓ |
| 12.00R24 | 20.0 | 8.5 | 12.3 | 48.4 | 1229.6 | 20.6 | 26 | 9921 | 131 | 9094 | 131 | 160/157K | – | ✓ | ✓ |
| 12R22.5 | 18.0 | 9 | 11.9 | 42.6 | 1082.2 | 19.5 | 24.6 | 7826 | 135 | 7165 | 135 | 152/149L | – | ✓ | ✓ |
| 13R22.5 | 18.0 | 9.75 | 12.5 | 44.4 | 1128.3 | 20.6 | 26 | 8267 | 120 | 7606 | 120 | 154/151K | 156/150G | ✓ | ✓ |
| 275/70R22.5 | 18.0 | 8.25 | 10.8 | 38.3 | 972.4 | 20.6 | 26 | 6945 | 131 | 6393 | 131 | 148/145L | – | ✓ | ✓ |
| 315/80R22.5 | 18.0 | 9 | 12.4 | 42.8 | 1087.6 | 19.5 | 24.6 | 8267 | 120 | 7606 | 120 | 154/151M | 156/150L | ✓ | ✓ |
| 315/80R22.5 | 20.0 | 9 | 12.5 | 42.8 | 1087.9 | 19.5 | 24.6 | 9094 | 131 | 8267 | 131 | 157/154M | – | ✓ | ✓ |
