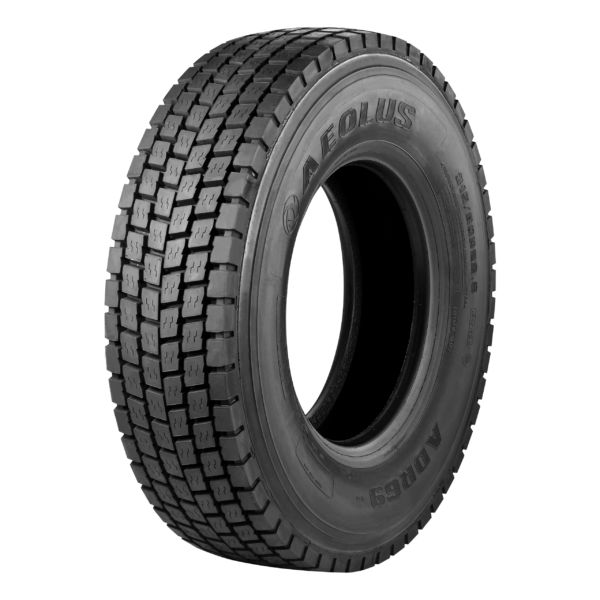

ADR69
- Drive axle tire suitable for regional use
- 3PMS tread design provides excellent traction
- Available 20 ply for increased load capacity
Tech Specs
| Size | Ply Rating | Meas. Rim |
Section Width |
Overall Diameter |
Tread Depth |
Max. Load & Press (Single) |
Max. Load & Press (Dual) |
LI/SS | Second LI/SS |
M+S | 3PMSF | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | inch | mm | mm | 32nds | lbs | psi | lbs | psi | ||||||
| 315/70R22.5 | 18.0 | 9 | 12.3 | 40.5 | 1029.3 | 23 | 29 | 7606 | 120 | 6945 | 120 | 152/148M | 154/150L | ✓ | ✓ |
| 315/80R22.5 | 20.0 | 9 | 12.6 | 43.1 | 1093.6 | 23 | 29 | 9094 | 131 | 8267 | 131 | 157/154M | – | ✓ | ✓ |
