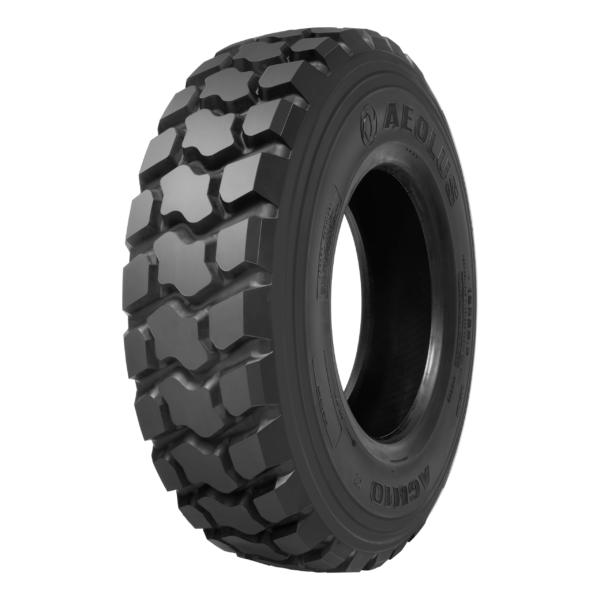

AGM10
- All Position, on/off road use;
- Suitable for relatively poor road surface applications
- Open tread design provides excellent traction
Tech Specs
| Size | Ply Rating | Meas. Rim |
Section Width |
Overall Diameter |
Tread Depth |
Max. Load & Press (Single) |
Max. Load & Press (Dual) |
LI/SS | Second LI/SS |
M+S | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | inch | mm | mm | 32nds | lbs | psi | lbs | psi | |||||
| 10.00R20 | 18.0 | 7.5 | 10.8 | 41.9 | 1064 | 22 | 27.7 | 7165 | 135 | 6614 | 135 | 149/146F | – | ML |
| 11.00R20 | 18.0 | 8 | 11.4 | 43.3 | 1098.8 | 22 | 27.7 | 7826 | 135 | 7165 | 135 | 152/149F | – | ML |
| 11R22.5 | 16.0 | 8.25 | 10.9 | 41.9 | 1065 | 22 | 27.7 | 6614 | 120 | 6008 | 120 | 146/143G | – | ML |
| 12.00R20 | 20.0 | 8.5 | 12 | 44.7 | 1134.1 | 21.5 | 27.1 | 8818 | 131 | 8047 | 131 | 156/153F | – | ML |
| 12.00R24 | 20.0 | 8.5 | 12.3 | 48.5 | 1232.8 | 23 | 29 | 9921 | 131 | 9094 | 131 | 160/157F | – | ML |
| 12R22.5 | 18.0 | 9 | 12 | 42.8 | 1087 | 21.5 | 27.1 | 7826 | 135 | 7165 | 135 | 152/149G | – | ML |
| 13R22.5 | 18.0 | 9.75 | 12.4 | 44.8 | 1137 | 22.5 | 28.3 | 8267 | 120 | 7606 | 120 | 154/151G | 156/150F | ML |
