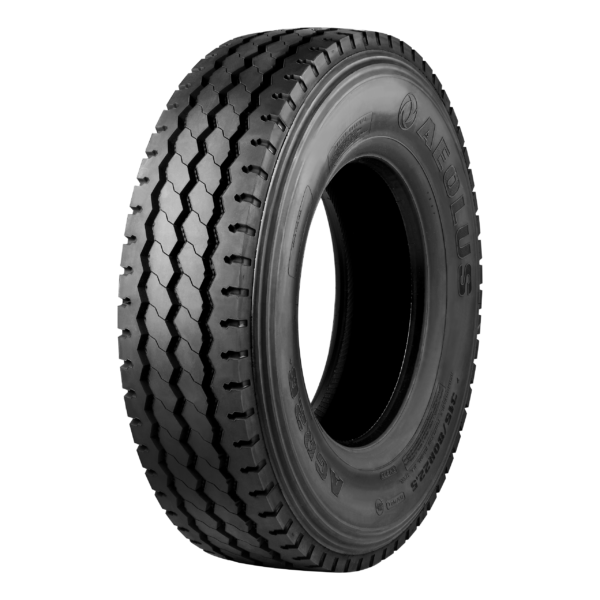

AGR26
- All position tire for regional applications
- Excellent retreadability
- Chip and cut resistant compound for high scrub applications such as tri-axle trailers
Tech Specs
| Size | Ply Rating | Meas. Rim |
Section Width |
Overall Diameter |
Tread Depth |
Max. Load & Press (Single) |
Max. Load & Press (Dual) |
LI/SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | inch | mm | mm | 32nds | lbs | psi | lbs | psi | |||
| 11R22.5 | 16.0 | 8.25 | 10.9 | 41.6 | 1057 | 18.5 | 23.3 | 6614 | 120 | 6008 | 120 | 146/143L |
| 11R24.5 | 16.0 | 8.25 | 11.4 | 43.3 | 1100 | 18.5 | 23.3 | 7165 | 120 | 6614 | 120 | 149/146L |
| 315/80R22.5 | 20.0 | 9 | 12.6 | 42.5 | 1080 | 18.5 | 23.3 | 10196 | 131 | 8267 | 131 | 161/154K |
