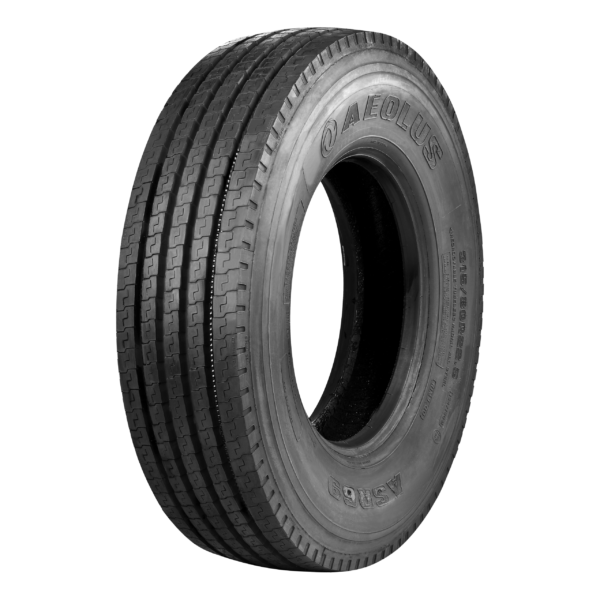

ASR69
- Steer axle tire for regional applications
- Low heat generating for improved casing life
- Excellent handling
Tech Specs
| Size | Ply Rating | Meas. Rim |
Section Width |
Overall Diameter |
Tread Depth |
Max. Load & Press (Single) |
Max. Load & Press (Dual) |
LI/SS | Second LI/SS |
M+S | 3PMSF | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | inch | mm | mm | 32nds | lbs | psi | lbs | psi | ||||||
| 315/70R22.5 | 18.0 | 9 | 12.2 | 40 | 1016.2 | 16.5 | 20.8 | 8818 | 120 | 7385 | 120 | 156/150L | 154/150M | ✓ | ✓ |
| 315/80R22.5 | 20.0 | 9 | 8.5 | 42.5 | 1080.3 | 16.5 | 20.8 | 9094 | 131 | 8267 | 131 | 157/154M | – | ✓ | ✓ |
